Asahi Linux M2 Microphone: Reverse Engineering Apple Silicon
Asahi Linux cracked M2 Pro microphone support through kernel tracing. Zero Apple documentation. Pure reverse engineering where AI tools…
Asahi Linux cracked M2 Pro microphone support through kernel tracing. Zero Apple documentation. Pure reverse engineering where AI tools cannot help.
One line. One property.
A developer spent hours tracing kernel code, hunting for a silent microphone on M2 Pro MacBooks. The culprit: a device tree property called apple.dma-range that broke IOMMU memory mapping (the hardware that manages how devices access system memory). No documentation existed. No AI tool could help. Just systematic investigation through undocumented hardware.
This is how open source works when you are working blind.
When Documentation Does Not Exist
Building software for Intel or AMD processors comes with thousands of pages of architecture manuals. Memory layouts, register specifications, interrupt handling.
Apple provides none of that for M-series chips.
The Asahi Linux project reverse engineers everything. Every driver, every hardware interface, every undocumented behavior. They figure out how hardware works by experimenting, tracing, and pattern recognition from other ARM implementations.
The M2 Pro/Max microphone worked on standard M2 chips. But the Pro and Max variants? Silent.

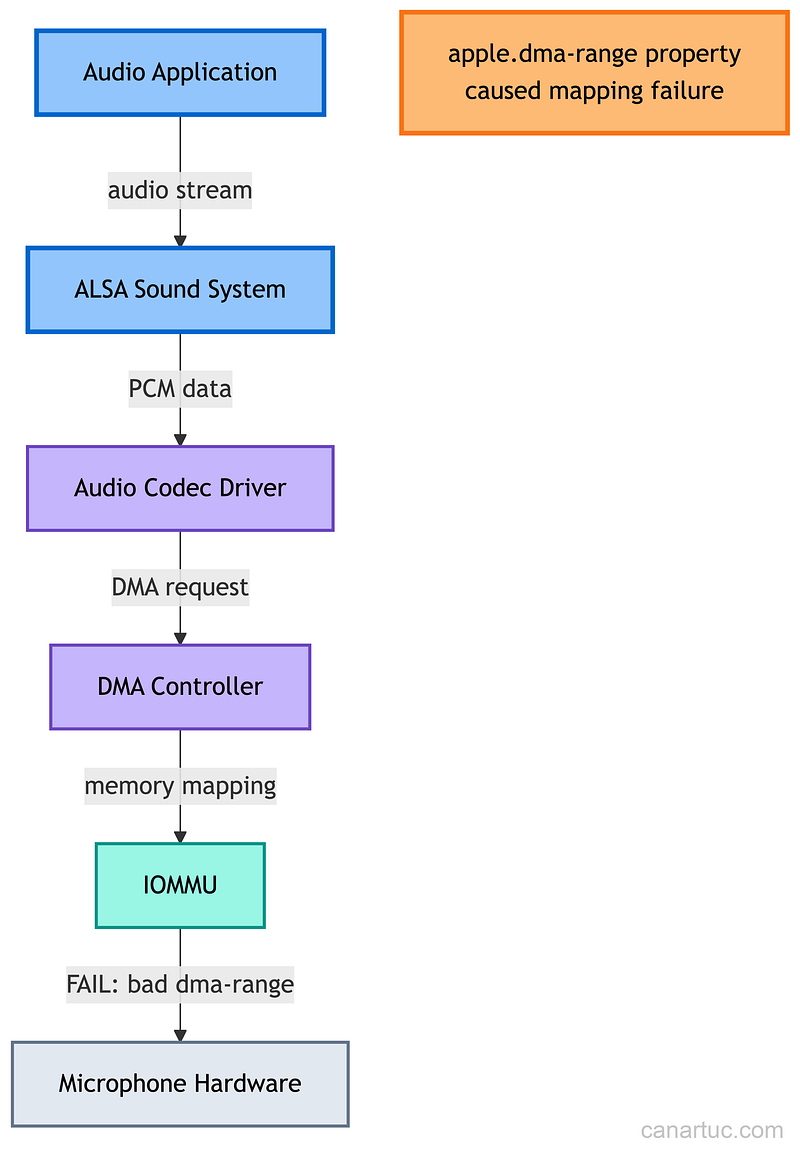

The developer who solved it added printk statements throughout the kernel, tracing the audio path from userspace down to hardware. The IOMMU (Input/Output Memory Management Unit) was failing to map memory correctly for DMA transfers.
